TEAC

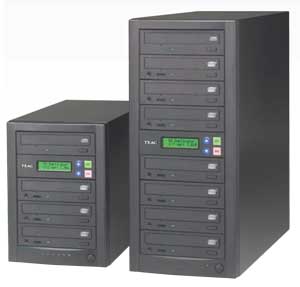

1x3 and 1x7 CD-R Tower Duplicators
Stand-Alone CD-R Duplicator Systems
Download PDF
- High-Performance and Fast Record
Speeds
- No Software or PC Connection Required
- Easy-to-Use LCD Display Menu for quick
operations
- Multiple Sub-Functions to Customize Your
System
- Internal Hard Drive Option for Master Image
Library
- Continuous Copying-cool down periods not
required
- Media Speed Auto Detect
TEAC’s new 1x3 and 1x7 CD-R Duplicators are
stand-alone disc-to-disc CD-R Duplication systems requiring no
PC Connection. With the numerous menu commands, optional hard
disk drive, TEAC’s Tower Series CD-R duplicators offer the
best solution for production level CD-R Duplication requirements
today. If fitted with the optional hard disk drive, data can be
stored allowing quick retrieval and duplication of your CDs. The
systems also Verify, and will Copy / Compare discs that are
duplicated.
TEAC’s new line of 1x3 and 1x7 CD-R
Duplicators have been specifically designed to meet the growing
demand for operators wishing to duplicate small to medium
quantities of CDs by the most cost-effective way. The 1x3 and
1x7 Tower systems offer high-performance, high-speed duplication
at 52X speeds.
There is no need to load extra software or
attach any cables to your PC. No extra time is needed to set up
the TEAC Tower units, as the towers completely function as
stand-alone units.
| Models: |
1x3: CDW-D13, CDW-D13H
1x7: CDW-D17, CDW-D17H |
| Hard Drive Capacities: |
1x3: CDW-D13H–80GB
1x7: CDW-D17H–80GB |
| Weight: |
1x3: CDW-D13 22lbs
1x3: CDW-D13H 23.5lbs
1x7: CDW-D13 37lbs
1x7: CDW-D17H 38.5lbs |
| Dimensions: |
1x3: 10.5” H x 7.5” W x
17.25” D
1x7: 17.25” H x 7.5” W x 18” D |
| CD Recorders: |
TEAC 52x32x52 CD-RW |
| Drive Interface: |
IDE/ATAPI |
| Read Speed: |
52X |
| Write Speed: |
CD-R: 52x
CD-RW: 32x |
| Drive Buffer Size: |
2MB |
| System Buffer Size: |
8MB |
| Supported Discs: |
CD-R,
CD-RW 8cm/12cm, card discs |
| Supported Formats: |
CD-ROM Mode-1; Mode-2
CD-DA; CD-ROM/XA, Game CD Mix Mode
Multi-session, HFS CD Bridge, CD Extra,
CD+G (Karaoke), CD-R, CD-RW, Photo
and Video CDs (slower speed) |
| System Control: |
Copy and Search Buttons |
| System Display: |
LCD Panel; LED Indicator |
| Write Method: |
Auto Detect (DAO, TAO) |
| Operation Mode: |
Copy, Test, Scan, Compare |
| Firmware Upgrade: |
Via CD-ROM |
| Power Supply: : |
AC Input 115-230V (manual switch) |
| Agency Certification: |
UL, FCC |
