Rackmount
Copiers
 The

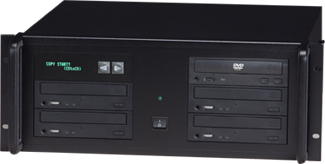

CopyWriter Rackmount is Microboards’s multi-drive DVD-R/CD-R
duplicator employing the use of General Purpose 8x DVD or 52X CD
recorders. The unit supports both standalone and optional
computer-connect operation and allows you to copy from multiple
DVD formats.
An intuitive, menu-driven display and 2-button control
interface provide simple one-touch operation for the novice user
while giving access to advanced features for the professional.
The hard drive comes standard with the system and allows the
user to archive up to 10 CD and/or DVD images or perform CD
track extraction for CD audio compilations. Content protection
makes it impossible to copy encrypted entertainment titles on
general purpose media. Check out our DVD FAQ for more
information.
| Series |
Recorders |
CD Recording Speed |
DVD Recording Speed |
Track Extraction |
Number of HD Images |
Bit-to-Bit* Data Verify |
LCD |
Recorder |
| Standard CD PRO |
4 |
52X |
-- |
· |
10 |
· |
· |
Basic |
| Standard DVD PRO |
4 |
40x |
8x |
· |
10 |
· |
· |
Basic |
| Premium DVD PRO |
4 |
48x |
16x |
· |
10 |
· |
· |
Industrial** |
| Features |
|
|
| ·Stand-Alone DVD-R / CD-R duplicator |
|
·4U rackmount enclosure for aesthetic integration
with current equipment |
| ·One Touch duplication |
|
·Simulation mode to ensure recording stability |
| ·Speed selectable (1x,2x,4x,8x for DVD-R and
4x,8x,16x, 24x, 40x for CD-R) |
|
·Easy-to-read, two-line display for status and error
reporting |
| ·Copy and Verify |
|
·Updates easily installed through DVD/CD reader |
| ·80GB hard drive comes standard for DVD/CD image
archival (up to 10 images) and CD track extraction for
audio compilation CDs |
|
·Supports DVD Video, DVD ROM, DVD+R, DVD-R, DVD-RW,
DVD+RW, Dual Layer DVD, CD-DA (Red Book), CD-ROM Modes
1&@, XA Forms 1&2, ISO 9660, Photo CD, CD-Extra,
Mixed Mode, Video CD, Hybrid CD, HFS |
| ·Direct Master Feature: Firewire Connection to PC or
Mac for DVD/CD mastering* |
|
*Optional Firewire (IEEE 1394) interface available for
PC or Mac. (PC software included with DSR DVD Series,
Firewire (IEEE 1394) adapters available from Microboards
Technology.) |
| Configurations (Number of Recorders) |
Dimensions (D x W x H) in inches |
Shipping Weight in lbs |
| Rackmount |
18 x 17 x 7 |
50 |
Operating Specifications:
Power: 100-240 VAC 50/60 Hz
MTBF>50,000 Hours MTTR less than 30 minutes
Environment: 10 C - 40 C RH: 20% - 80%
·Track Extraction allows the user to create Customized Audio
Discs
*Verification is bit-to-bit for Data disc only.. For CD-Audio
and CD-XA (Extra) basic disc read check is performed.
**The Premium Series of CD and DVD Towers feature
industrial-quality Plextor recording drives.
|
